interconnecting cables

Optical fiber patch cord & pigtails

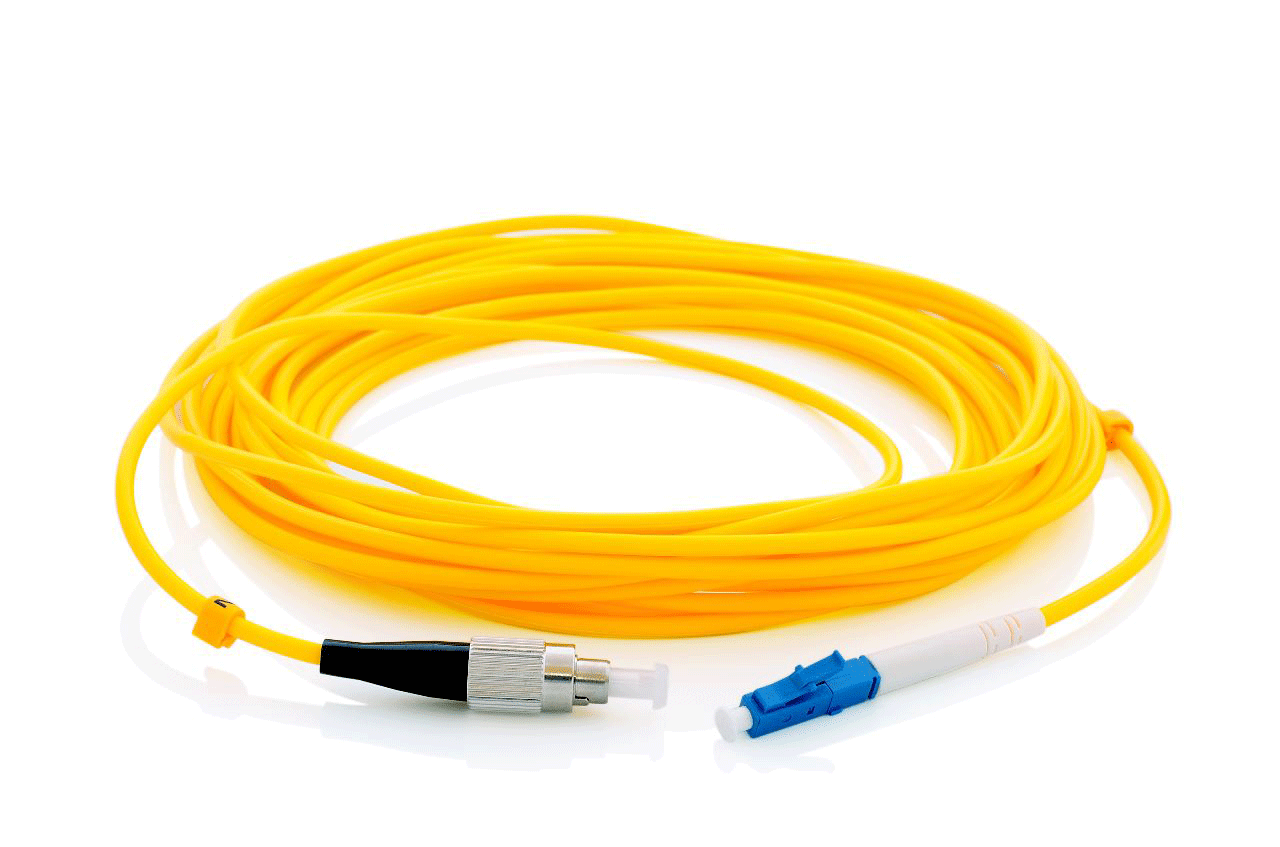

Optical fiber patch cord

Features Low insertion Loss, Ultra low back reflection, Customized lengths, High crush and tensile strength Specifications

Specifications

  • Connector type FC/ST/SC
  • Wavelength 850nm, 1310nm, 1550nm
  • Fiber type Single Mode and Multimode Cable
  • Diameter 3mm or 0.9mm
  • Polish Type PC / SPC/ UPC
  • Insertion Loss < 0.5 dB (typical)
  • Return Loss < 45dB (typical)
  • Operating Temperature -20 o C +70o C

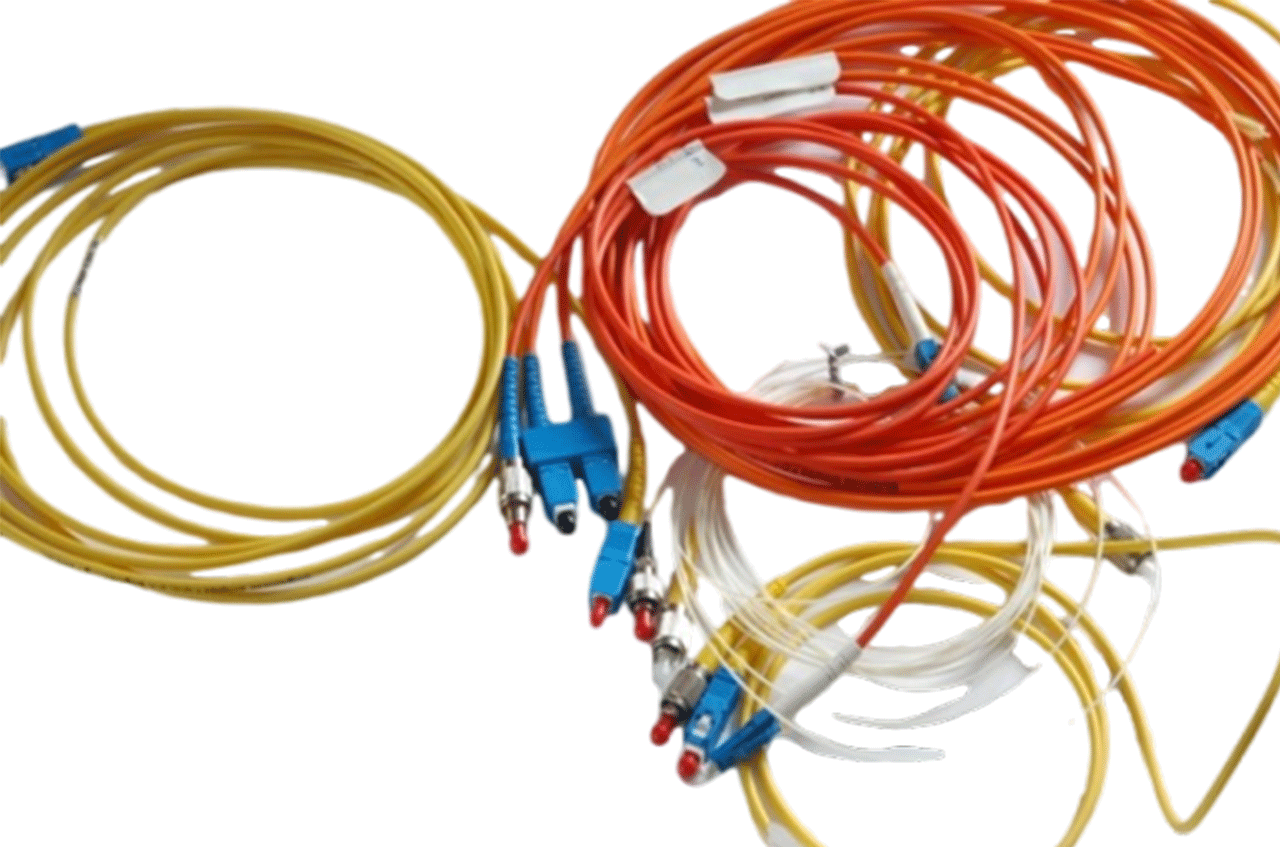

Optical Fiber Pigtails



Features Low Insertion Loss, Ultra low back reflection, Customized lengths, High crush and tensile strengths

Specifications

  • Connector Types : FC/ST/SC
  • Operating Wavelengths: 850nm, 1310nm, and 1550nm
  • Fiber Types: Single Mode and Multimode Fibers
  • Diameter: 3mm or 0.9mm
  • Polished: PC/SPC/UPC/APC
  • Insertion loss of 0.5 dB (typical)
  • Return Loss 45dB (average)
  • Operating Temperatures : -20 C +70 C
